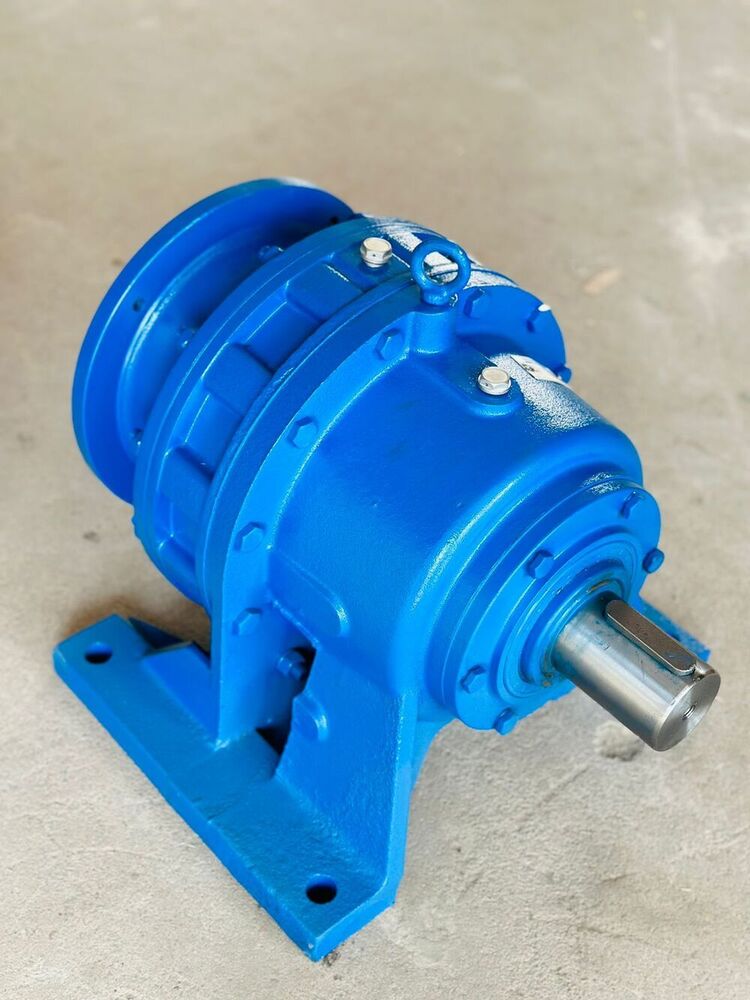

Cyclo Gear Box

Cyclo Gear Box Specification

Gear Type
Cyclo

Material
Cast Iron

Processing Type
Die Casting

Gear Tooth Profile
Cycloidal

Gearing Arrangement
Planetary

Direction
Bidirectional

Output Torque
200 Nm

Rated Power
1.5 kW

Input Speed
1500 rpm

Output Speed
14 rpm

Voltage
415 V

Efficiency
up to 94%

Cyclo Gear Box Trade Information

Minimum Order Quantity
1 Number

FOB Port
vadodara

About Cyclo Gear Box

A cyclo gearbox, also known as a cycloidal gearbox or cycloidal drive, isa type of mechanical gearbox designed for high precision and torque transmission with minimal backlash.It works by using a cycloidal disk moving in an eccentric path, engaging with pins on the gearbox housing to convert input rotation into a reduced output rotation

Engineered for High Efficiency and Low Noise

The Cyclo Gear Box offers exceptional operational efficiency of up to 94% while maintaining a low noise level. Its cycloidal gear tooth profile and planetary gearing arrangement ensure smooth, quiet power transmission. The horizontal foot-mounted design allows for easy installation in tight industrial spaces, promoting stability and trouble-free operation in demanding environments.

Designed for Durability and Versatility

Constructed with die-cast cast iron, this gear box is built to withstand intense industrial use and wide ambient temperature fluctuations from -10C to +50C. Its oil bath lubrication system reduces wear and extends service life, making it a preferred choice for applications in material handling, conveyors, and mixers.

Ideal for Diverse Industrial Applications

Whether for use in conveyors, mixers, or other material handling equipment, this Cyclo Gear Box delivers consistent performance and high output torque. Its bidirectional movement capability and standardized mounting facilitate versatile system integration, supporting a wide range of operations across industries in India.

FAQs of Cyclo Gear Box:

Q: How do I install the Cyclo Gear Box with a horizontal foot-mounted configuration?

A: To install the Cyclo Gear Box, secure it on a flat, firm base using the designated foot mounts. Ensure that the alignment between the input and output shafts matches your application to prevent misalignment or undue stress. Follow all manufacturer instructions for mounting and connecting to your machinery.

Q: What are the benefits of using a cycloidal gear tooth profile in this gear box?

A: The cycloidal gear tooth profile minimizes vibration and noise while maximizing torque transmission efficiency. Compared to traditional gears, cycloidal profiles offer better shock load resistance and have a longer service life, making them suitable for demanding industrial environments.

Q: When is oil bath lubrication preferred for gear boxes like this model?

A: Oil bath lubrication is ideal when continuous lubrication is needed for gears operating at varying speeds and loads. It provides superior cooling, reduces wear, and extends the life of components, especially in heavy-duty or continuous operation settings like conveyors and mixers.

Q: Where can this Cyclo Gear Box be utilized effectively?

A: This gear box is highly effective in conveyor systems, material handling equipment, and industrial mixersanywhere high torque and low output speed are required. Its robust design and temperature resilience make it suitable for factories, warehouses, and even outdoor installations within the specified temperature range.

Q: What is the process for maintaining optimal efficiency and longevity of this gear box?

A: Regularly check and top up the oil bath lubricant, inspect for any unusual noises or vibrations, and ensure the mounting bolts are secure. Scheduled preventive maintenance, including routine cleanings and inspections, will preserve efficiency and extend operational life.

Q: How does bidirectional operation benefit industrial applications?

A: Bidirectional operation allows the gear box to transmit power in both directions, enabling flexible system design and simplifying applications requiring reversing motion, such as certain conveyors or mixers.
